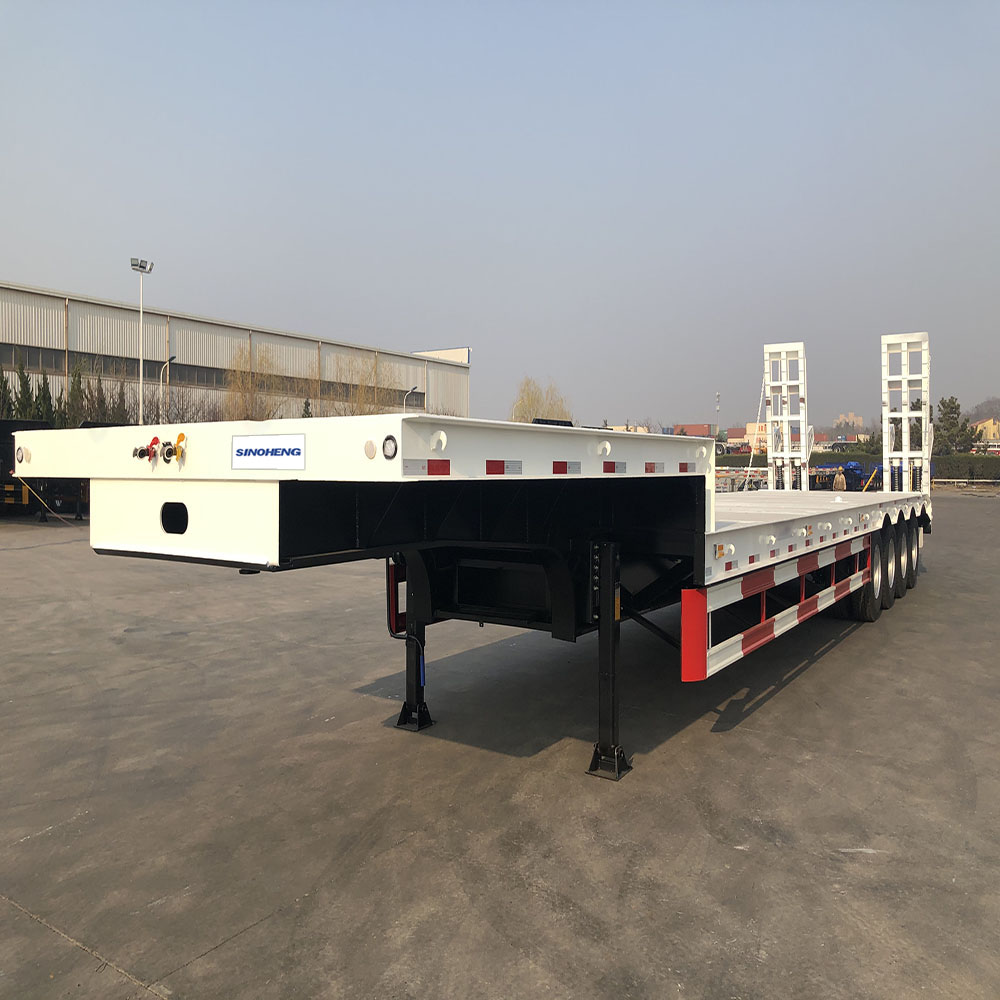

| Type | Low-bed semi-trailer | |
| Parameter
|
Overall Dimension (mm) | Length×width×height:13000*3000*1100mm(Size can be chose freely) |
| Main beam | The height of the beam is 520mm,upper plate 12mm,down plate is 14mm,middle plate is 10mm, Material is T700 Steel | |
| Side Beam | The height of the beam is 230mm,upper plate 8mm,down plate is 8mm,middle plate is 6mm, Material is T700 Steel | |
| plate spring | 90*13-10 6/8 sets, Funiu or Taiyue or other china brand | |
| Tare Weight (kg) | 7,000 kg（±5%） | |
| Payload (kg) | 60,000 kg（±5%） | |
| Tire Type and quantity | 12R22.5-18 12units | |
| Steel Rim | 9.00-22.5 12Units | |
| Configuration | Axle | 13T 3/4 pcs, BPW or FUWA or Yonglitai or Huajin or other china brand |
| Suspension | Mechanical Suspension / air suspension / single point suspension (Germany Type or American Type or Japan Type) | |
| Traction Pin | 2″(50mm)or3.5″(90mm) | |
| Spare Wheel Bracket | 1 pieces | |
| Brake System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 40L air tanks， ABS Optional upon choice | |
| Landing Gear | Standard 28Ton, Single-Side Operation or Double-Side Operation or self-made type
JOST brand or FUWA brand or other china brand. |
|
| Electrical System | 1.Voltage:24V， LED lights
2.Tail lamp with turn signal, brake light & reflector, side lamp etc. 3.Receotacle:7 ways (7 wire harness) |
|
| Tool box | 1 Standard (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) | |
| Color | As the customer request | |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final | |
| Other | Can add Mid & Rear Side protection, the side beam hook | |
| Cross member | “C” type & “T” type channel steel | |
| Platform plate | Side 4# checker plate, middle 1.8# checker plate | |

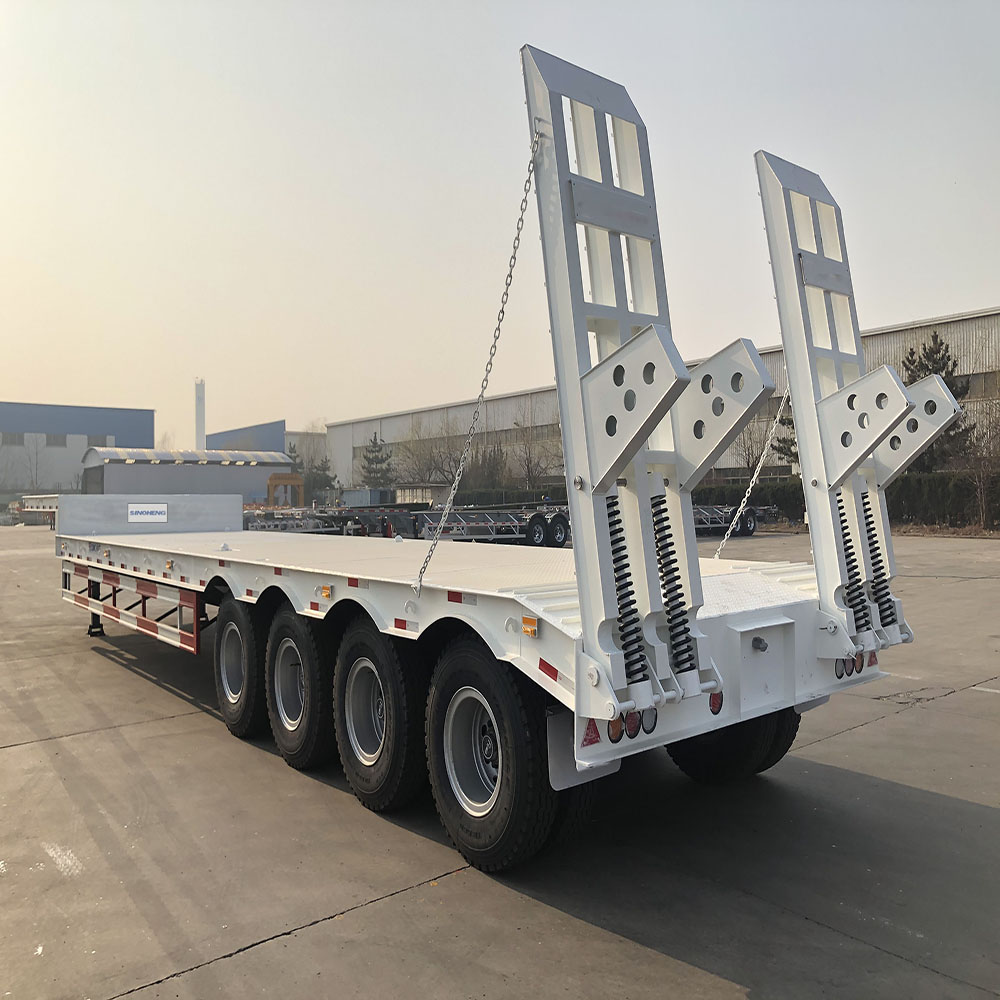

| Ladder | 1 pair, Mechanical or hydraulic type, width 800mm | |
Structural Details
1.Reasonable structural design,low center of gravity,long vehicle and more loading.
2.Single axle/double axle/three axle, single tire /double tire,different length and different tonnage.
3.Loading 40 foot /45 foot /48 foot boxes,providing a variety of options and configurations for customers to choose from.
4.Reliable and durable,preferred materials,reliable quality and long service life.
5.We have advanced testing equipment : Components,hardness,and phase of metal are analyzed to ensure the standards of processed material and the quality of finished products.
More Models
Providing a variety of options and configurations for customers to choose from.
Company Profile
SINOHENG Semi-trailer Factory Division under SINOHENG Group, is a semi trailer factory specializing in the production, R&D and export. The sales department is in Jinan, Shandong, China, and the factory is located in Liangshan, Shandong.
As a global reliable supplier of semi-trailers, the products produced by our factory include dump semi-trailers, special container semi-trailers, flat-bed semi-trailers, box cargo semi-trailers, refrigerated and fresh-keeping semi-trailers, fence semi-trailers, warehouse gates Type semi-trailer, low load-bearing surface semi-trailer, full trailer, vehicle transport semi-trailer, cement tanker semi-trailer, oil, natural gas, liquefied gas tanker semi-trailer, etc. Exported to Africa, Asia, Middle East, South America, Central and North America, Commonwealth of Independent States and other countries and regions, including Congo, Tanzania, Philippines, Thailand, Vietnam, Indonesia, Nigeria, Ethiopia, Saudi Arabia, Kenya, Uganda, Guinea, Zambia, Angola, Tanzania, Zimbabwe, South Africa, Honduras, Cuba, Venezuela, Peru, Argentina, Brazil and many more.
