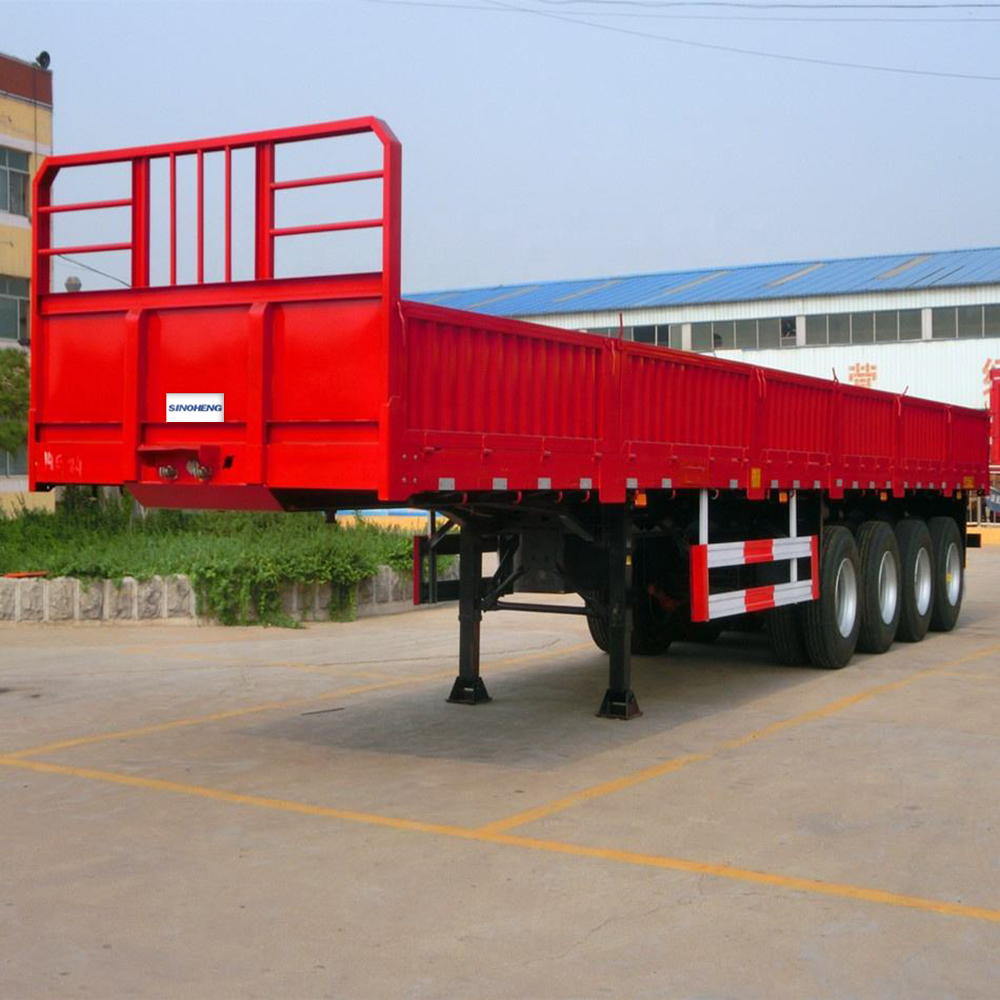

Side Wall Semi-trailer with 3 Axles 40 Feet Truck

Send Inquiry

Type	Three axles 40 feet with side wall semi-trailer
Gross Weight	About 7.5 tons
Outer side dimension(mm)	13000 × 2500 × 2850
Loading Capacity (Ton)	≤ 50T
AXLES	13 T /PER, 3axles FUWA Brand,
Tire	12.00R22.5, 13pieces Triangle or double coin brand
Rim	9.00-22.5, 13pieces China Brand
Suspension	Mechanical suspension (America Type)
Spring leaf	90(W)mm13(Thickness)mm 10pices, heavy duty type
King pin	JOST brand 2.0 or 3.5 inch bolts type
Support leg	28T or JOST brand E100
Main Beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Plateform	3mm diamond plate steel
Side beam	16# channel steel
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank
Fuel tank	1000L
Hooks	With
Twist Locks	12 pieces (Lifting type)
Valve	WABCO valve
ABS	Without
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
